Monitor 4 / 4EC Survey Meter

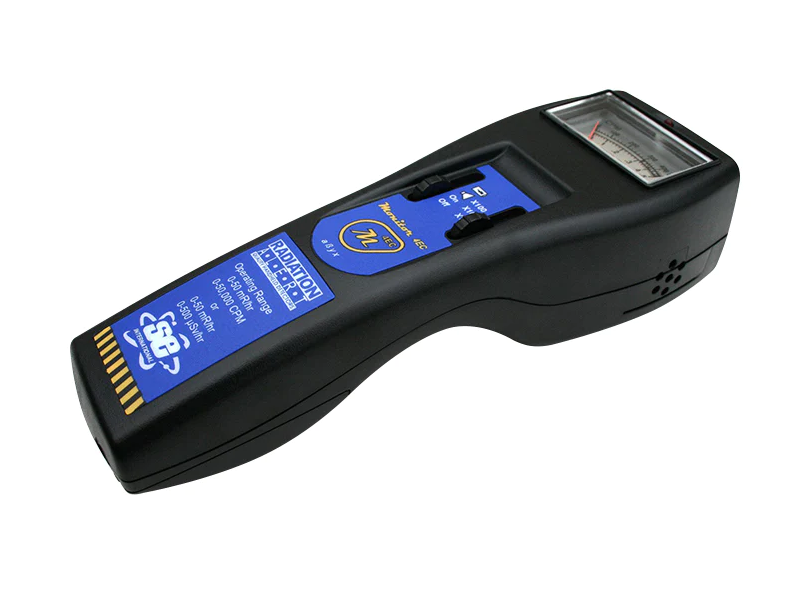

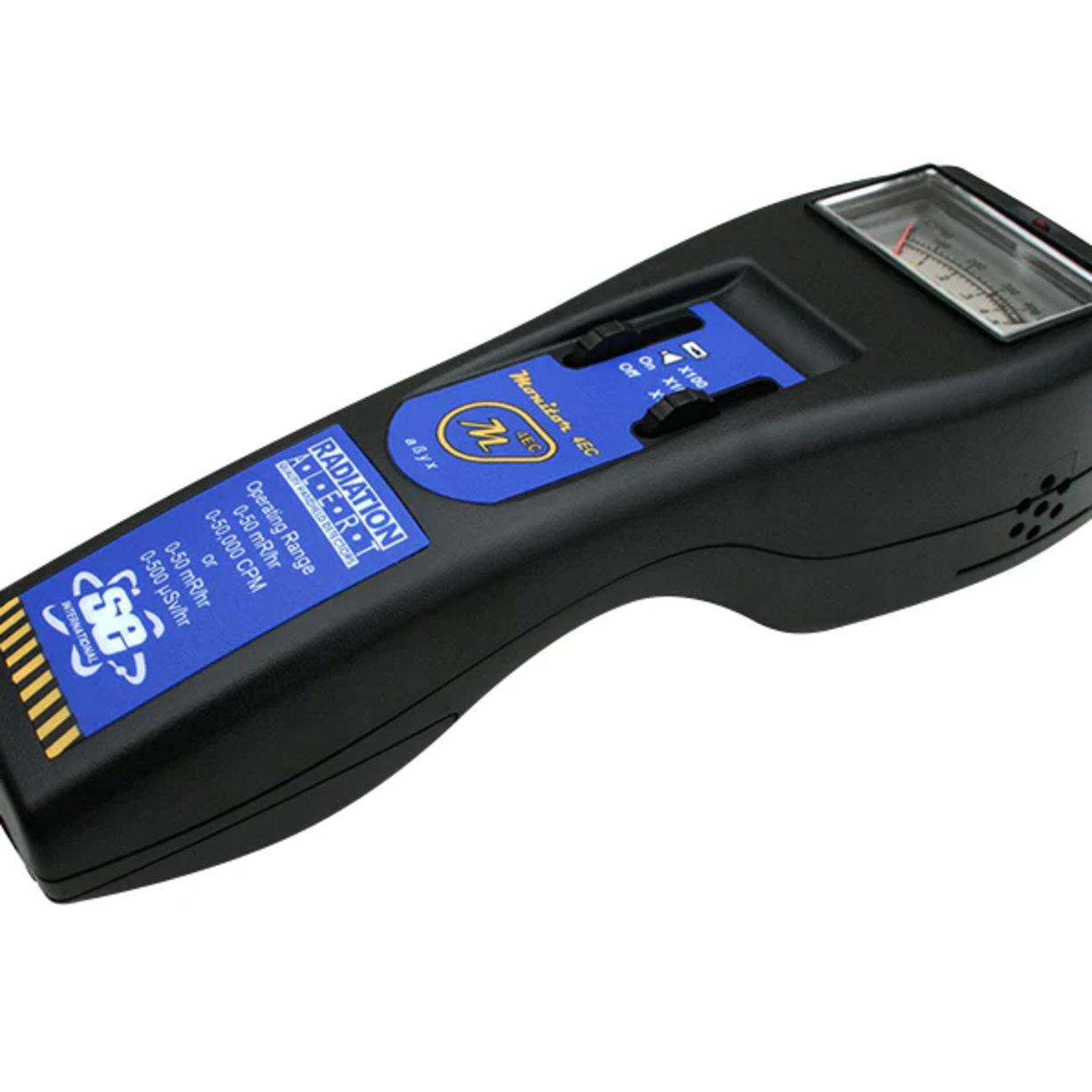

The MONITOR 4 and MONITOR 4EC are compact, general purpose survey meters capable of detecting alpha, beta, gamma, and x-rays over 3 selectable ranges. A red count light flashes and a beep sounds with each event detected. The Monitor 4EC offers a more accurate linear reading for gamma and x-rays (above 40 keV).
Specifications:
- Monitor 4: Halogen-quenched uncompensated GM tube with thin mica window 1.5-2.0 mg/cm2 thick.
- Monitor 4EC: Halogen-quenched GM tube, energy compensated sidewall 2mm tin filter. Thin mica window 1.5-2.0 mg/cm2 thick.
- Monitor 4 Energy Sensitivity: Detects alpha down to 2.5 MeV; typical detection efficiency at 3.6 MeV is greater than 80%. * Detects beta at 50 keV with typical 35% detection efficiency. * Detects beta at 150 keV with 75% typical detection efficiency.
- Detects gamma and x-rays down to 10 keV typical through the window, 40 keV minimum through the sidewall of the detector. Normal background is approximately 10-20 CPM.
- Gamma Sensitivity: 1000 CPM/mR/hr
- Monitor 4EC Energy Sensitivity Same as Monitor 4 except: The energy response for gamma and x-rays through the detector sidewall is flat within +61% or -26% over the range of 40 keV to 100 keV, and within +35% or -17% over the range of 100 keV to 1.3 MeV (referenced to Cs-137)
- Range Switch: X1, X10, X100, Battery Check.
- Operating Range: 0-.5, 0-5, 0-50 mR/hr and 0-500, 0-5,000, 0-50,000 CPM
- Accuracy: ±10% of full scale (referenced to Cs-137).
- Audio Indicator: Internally mounted beeper (can be switched off for silent operation).
- Anti-Saturation: Meter will hold at full scale in fields as high as 100 times the maximum reading.
- Power Requirements: One 9-volt alkaline battery. Battery life is up to 2,000 hours at normal background radiation levels.
- Temperature Range: -20° C to 55° C (-4° F to 131° F).
- Weight of the Monitor 4: 178 grams (6.3 oz.) without battery
- Weight of the Monitor 4EC: 198.1 grams (7 oz.) without battery
- Size: 145 x 72 x 38 mm (5.7 x 2.8 x 1.5 inches).

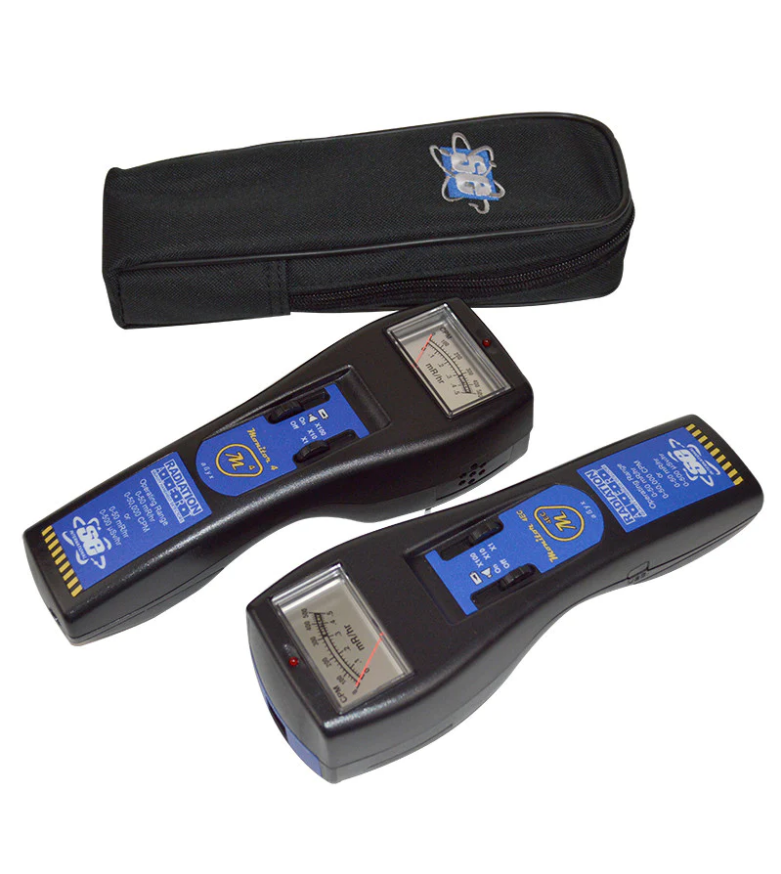

- Includes: Carrying Case, 1 year limited warranty, and CE mark
- Options: Belt Clip
