FV-2009 PRO-V - Vehicle LED Film Viewer Waterproof design/WET Viewer with a fully sealed enclosure

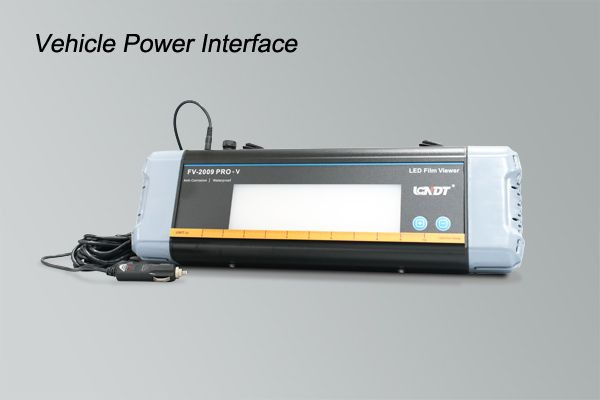

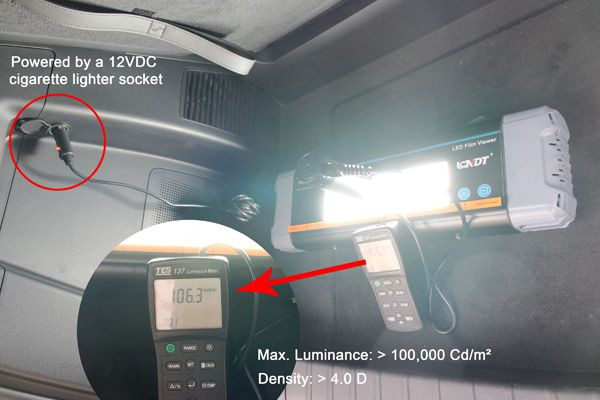

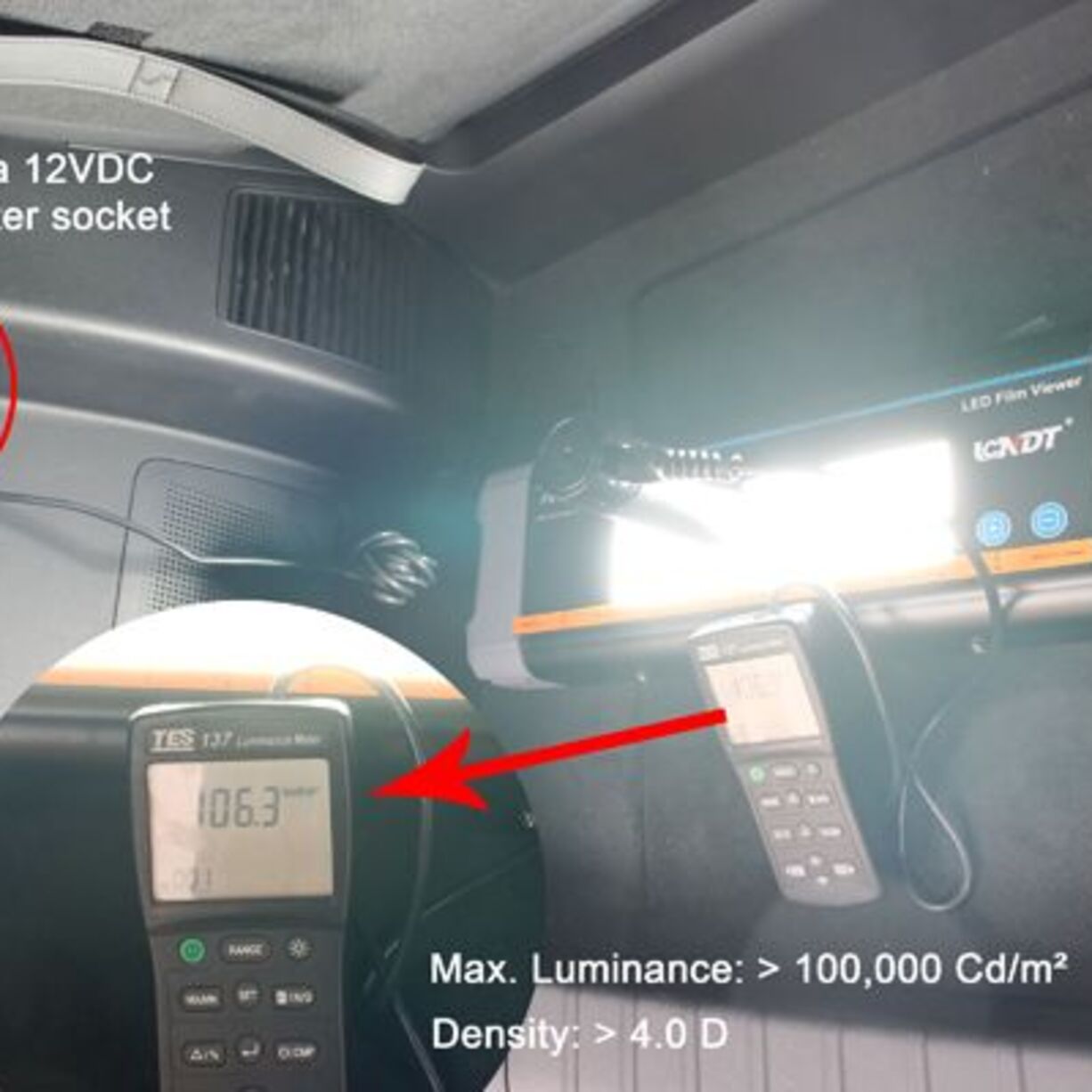

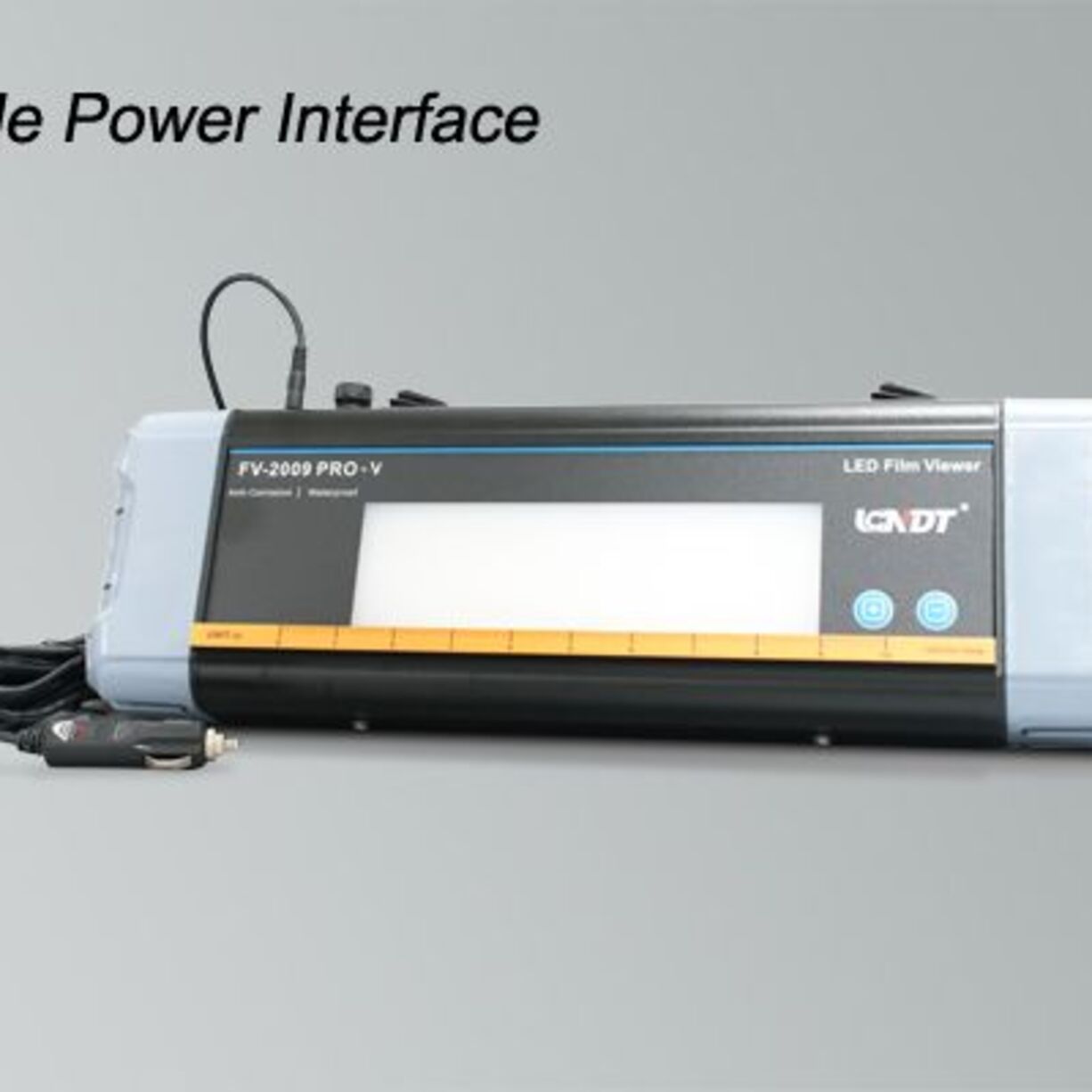

The FV-2009 PRO-V is designed for use in vehicles and the field. It can be powered either through the 12V car cigarette lighter socket or used with a 110V-220V AC power supply. This allows it to be conveniently connected directly to a vehicle without the need to purchase an additional and expensive inverter.   Since the device is fully sealed, it is waterproof and can be used to view wet films directly. Equipped with ultra-bright LED chips, it is
capable of handling films with a density of up to 4.0. It can be considered the best choice for mobile field work currently available.





Features

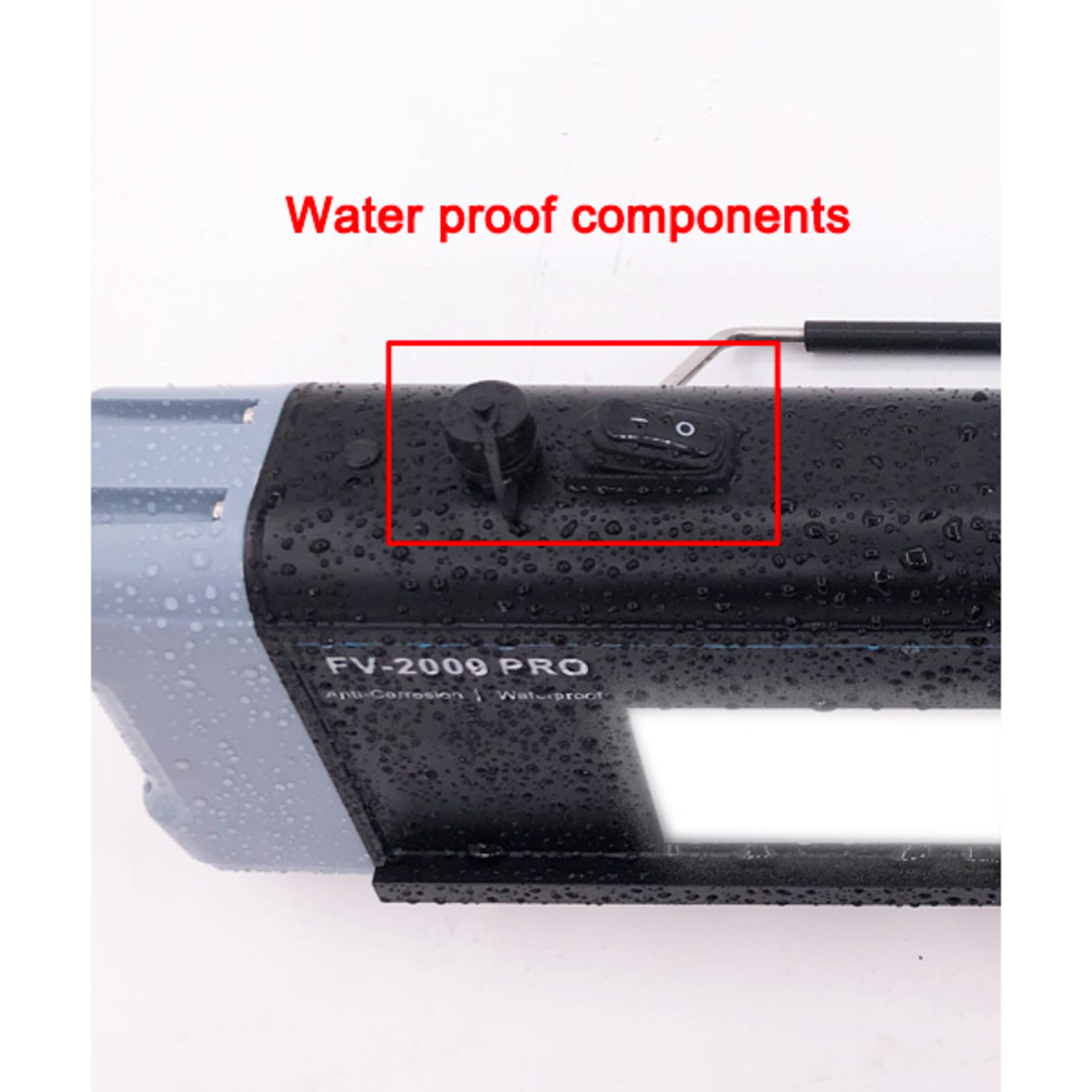

  • All of the connectors and switch are waterproofed
  • Viewer Window Size: 200 x 60mm
  • The enclosure of the viewer is sealed

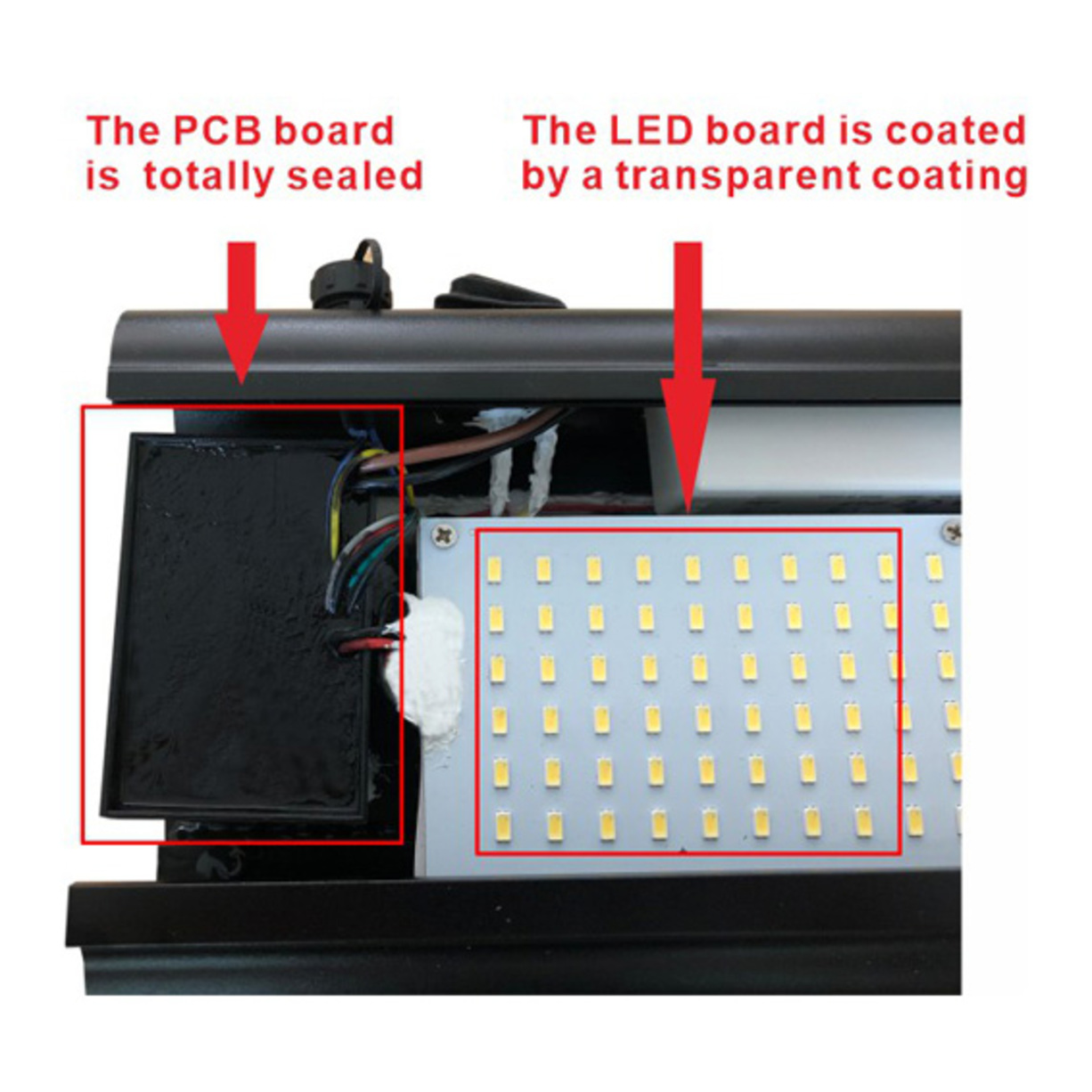

  • The LED board is coated by a transparent coating
  • A 13-step switch with intensity range from 0%-100% replaces the potentiometer
  • Long press of "+" will light to maximum. Long press of "-" will dim to minimum
  • Designed for vehicle-mounted and field use, ideal for wet film viewing.
Specifications
Intensity:
≥105,000 Cd/m² (329,700 Lux)
Stainless Steel Hardware:
Components for corrosion resistance
Wall Mounted Brackets:
Dual-use for vehicle-mounted and AC power sources
Environmentally Friendly:
Lower Power Consumption
Viewer Window:
200 x 60mm
Uniformity:
Higher uniformity across viewing window (g ≥ 0.95)
Diffusion Factor:
σ'>=0.95
LED Technology:
Cool operation, long lifespan, corrosion-resistant coating
Dimmer:
0% - 100% adjustable in 13 steps using "+" and "-" keys
AC Power:
85-264V AC, 47-63Hz (Full range)
Rated Power:
50W
Power:
Car Cigarette Lighter Power 12V DC
Compact Size:
17.9 x 5.5 x 2.6" 455 x 140 x 65mm (L x W x H)
Weight:
5.5 lbs. (2.5 kg)
