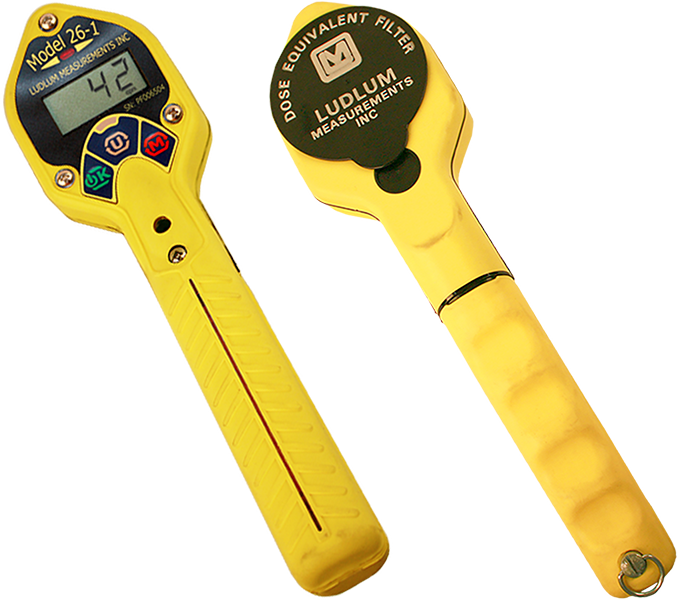

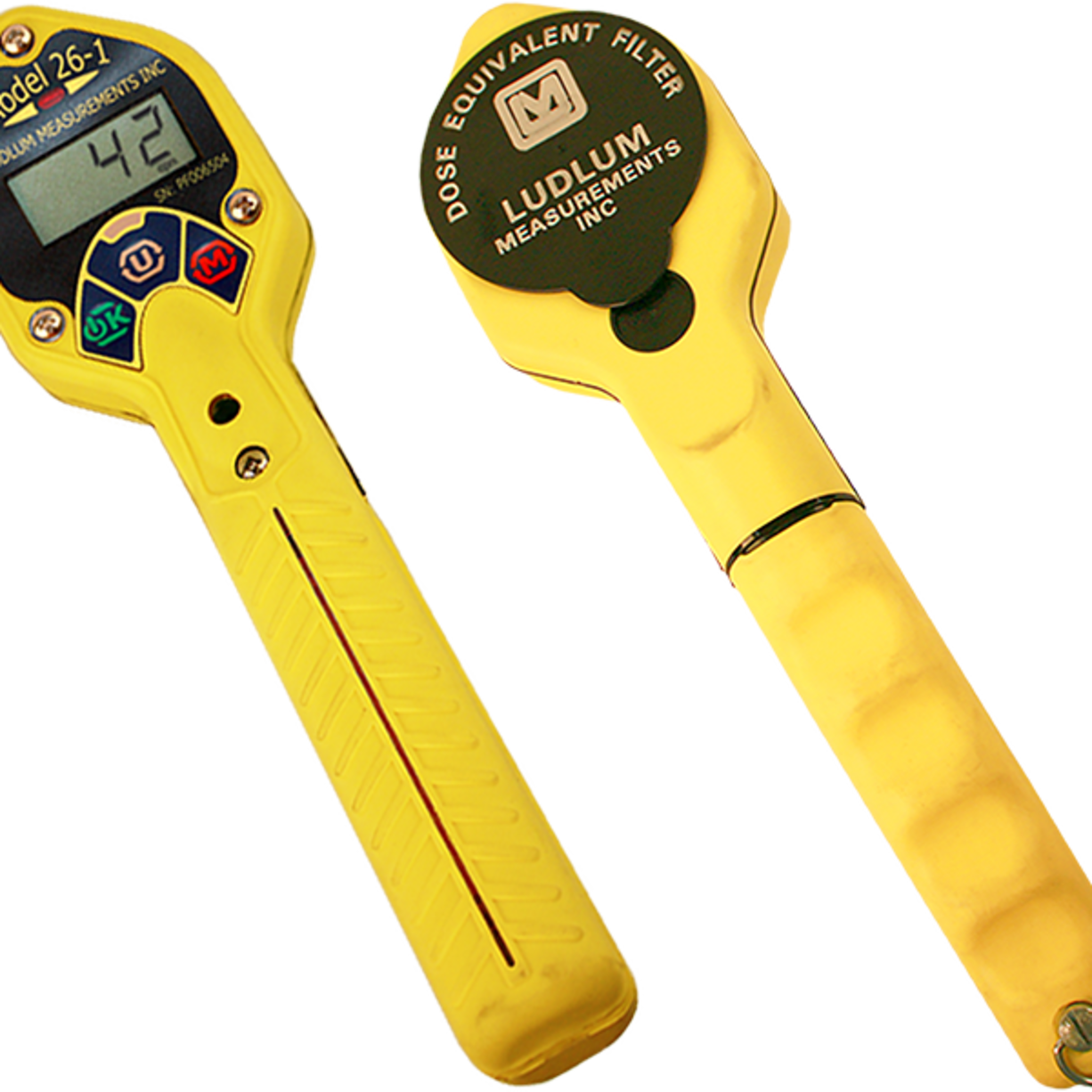

Model 26-1 Series

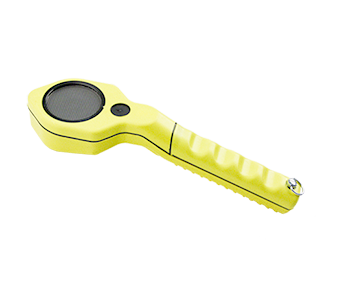

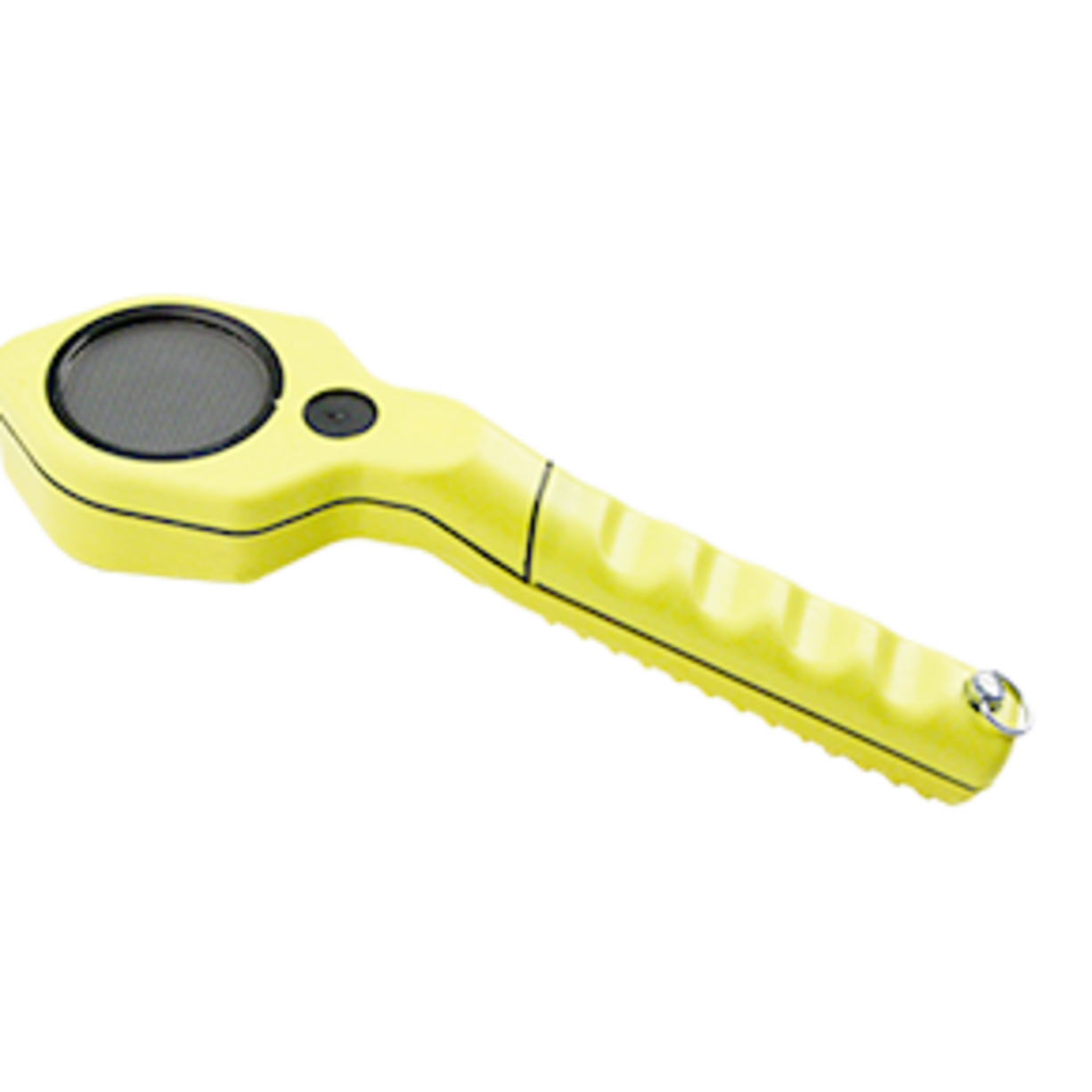

The Model 26-1 Integrated Frisker is designed to simplify the process of detecting radioactive contamination on people and objects. Unlike other meter and detector combinations that require two-handed operation, this instrument combines the meter electronics and detector in a single, easy-to-use tool. Its design incorporates a 15.51 cm2 (2.4 in2) GM pancake detector, an easy-to-read LCD screen, an ergonomic handle, and a simple three-button interface to allow one-handed operation.

Three modes of operation are available — RATE, MAX, and COUNT — which can be selected by pressing the MODE button. RATE mode displays the current count, exposure, or activity rate. MAX mode captures the highest count, exposure, or activity rate detected; this is useful for finding a peak rate or for frisking when the display is not visible. COUNT mode allows the operator to perform a survey for a preset amount of time; depending on the chosen units, the count result can be a scaler count, a time-averaged rate, a time-averaged exposure or dose rate, or an integrated exposure or dose. Measurements can be displayed in units of cps, cpm, dpm, Bq, mR/h, or μSv/h. The user can switch between two sets of chosen units (primary and secondary) for RATE and MAX modes by pressing the UNITS button.

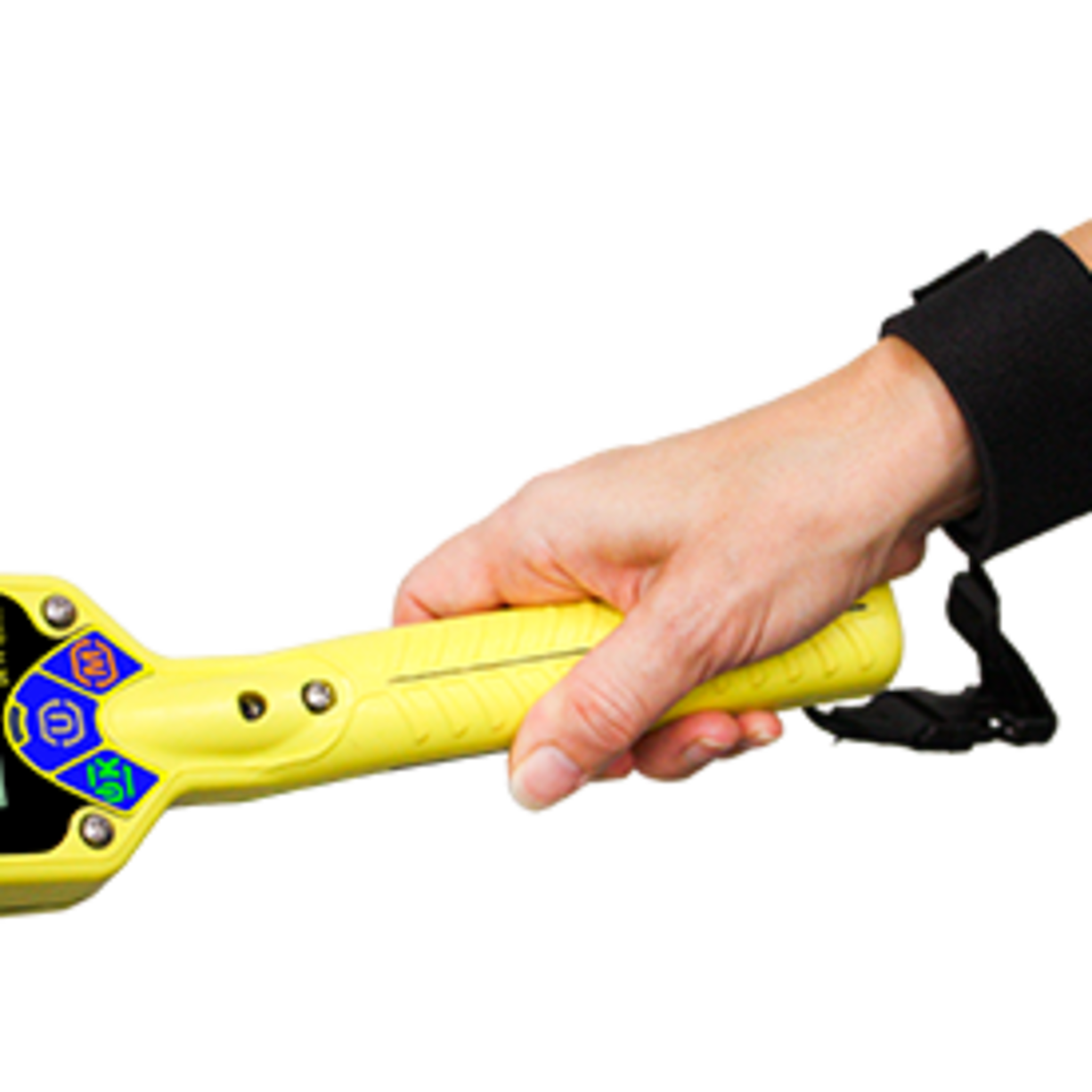

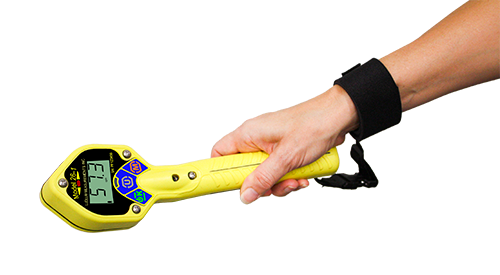

Other features include an auto-ranging and backlit LCD screen, “click” audio (which can be silenced), and user-settable count rate and scaler alarms. The instrument body is made of high impact plastic and water-resistant construction allows the instrument to be used outdoors. A wrist strap and lanyard are included for keeping the instrument close and secure. The instrument is powered by two alkaline AA batteries with a battery life up to 1000 hours.

Features
  • Integrated, Lightweight Ergonomic Design
  • High-Impact Plastic with Water-Resistant Rubber Seals
  • Employs Standard 15.51 cm2 GM Pancake Detector
  • Displays in mR/hr, µSv/h, dpm, Bq, cpm, or cps
  • Dead-Time Correction (DTC) Allows Gamma Measurements Up to 500 mR/hr or Up to 1999 µSv/h
  • Simple Three-Button Operation
  • Count Rate, Exposure, Dose, and Counting Alarms
  • Automatic Display Backlight
  • Bright Red, Flashing Alarm LED
  • Includes Wrist Strap, Detector Cover & Lanyard
