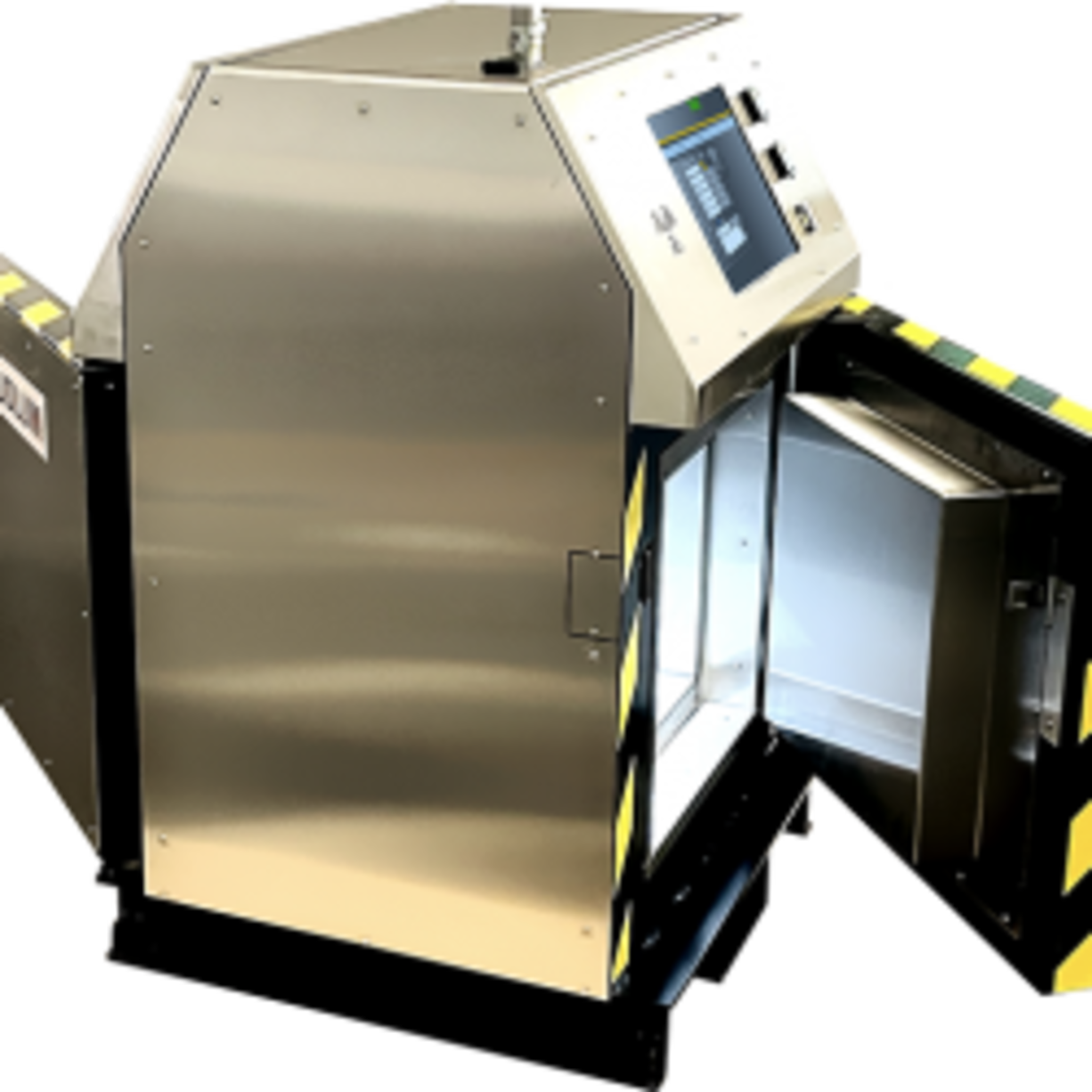

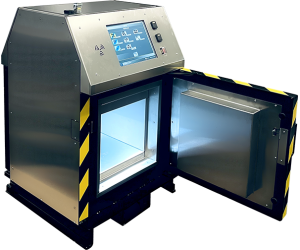

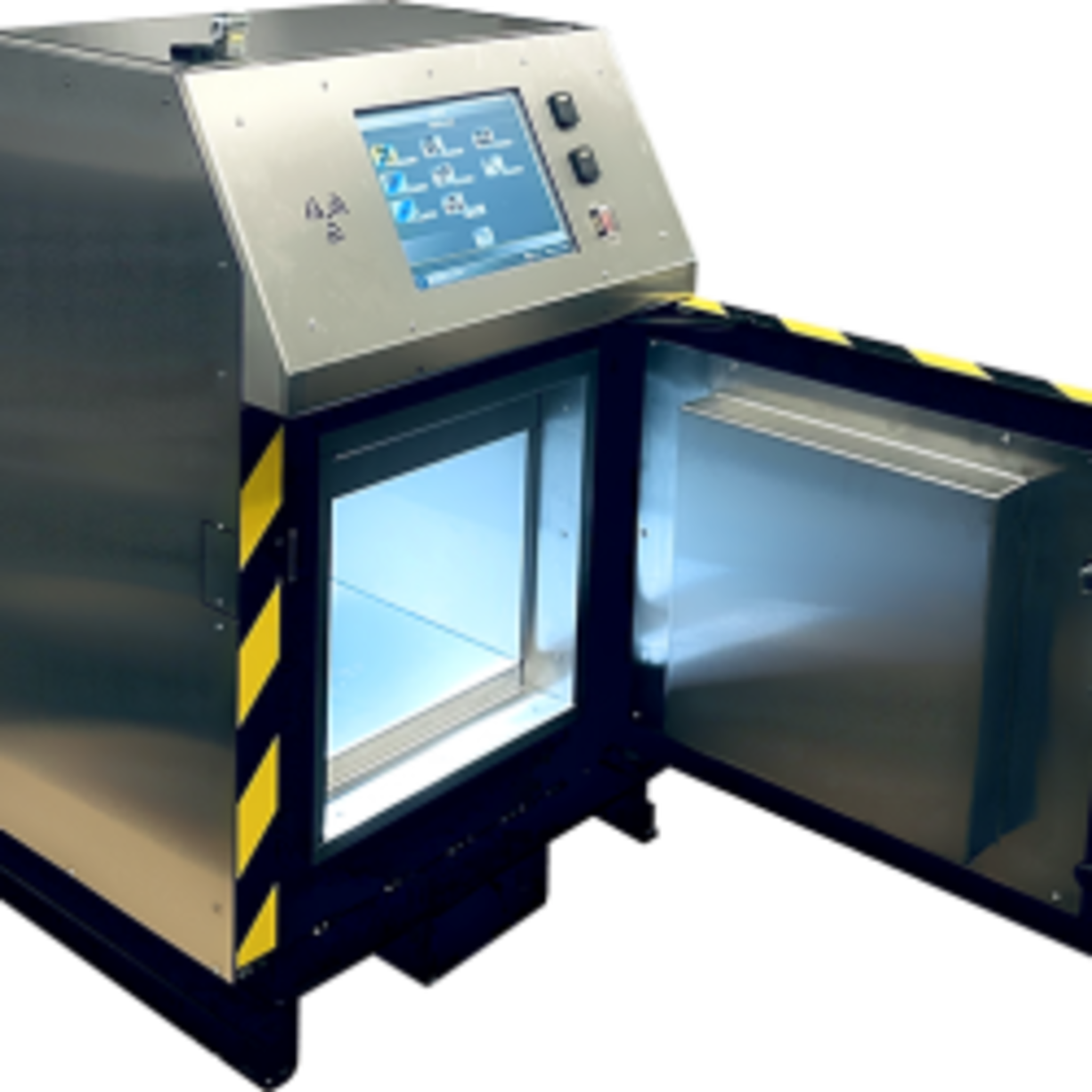

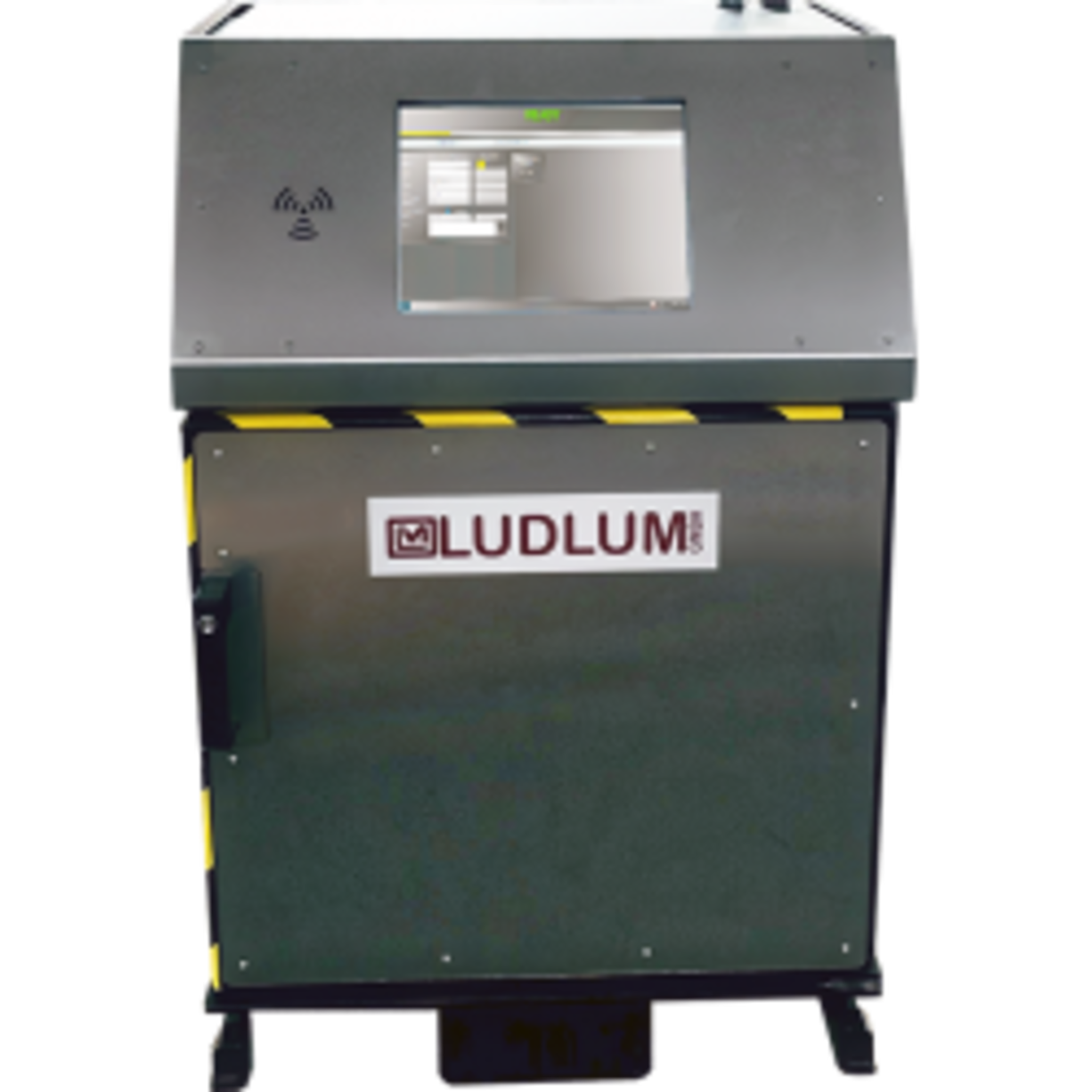

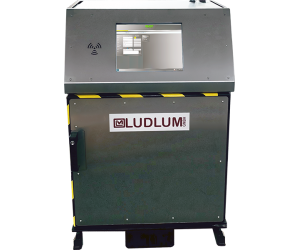

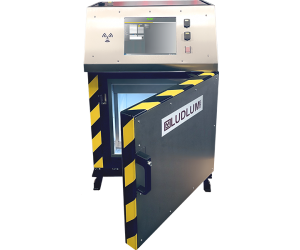

Model HWM-38

The Model HWM-38 small article monitor is designed for the measurement and release of small items such as tools, helmets, personal protective equipment, documents, and measuring instruments with a maximum mass of 50 kg (110 lb). This instrument is ideal as an automated release measurement system.

The standard equipment includes:

• 4 gamma plastic detectors, 6 detector option
• 25 mm (1 in.) lead shielding (or 50 mm [2 in.] option)
• Two door interlock system with the option to use one door only
• Integrated scale
• Easy to clean stainless steel housing
• Integrated 12 in. touch-screen display
• Automated measuring process with user guidance
• Multichannel analyzer (MCA) to optimize discrimination of background radiation

The Model HWM-38 provides fast and reliable detection of gamma radiation, based on the latest measurement electronics. With the integrated maintenance modules, the system can be updated continuously to maintain its high performance for every measuring task now and in future.
