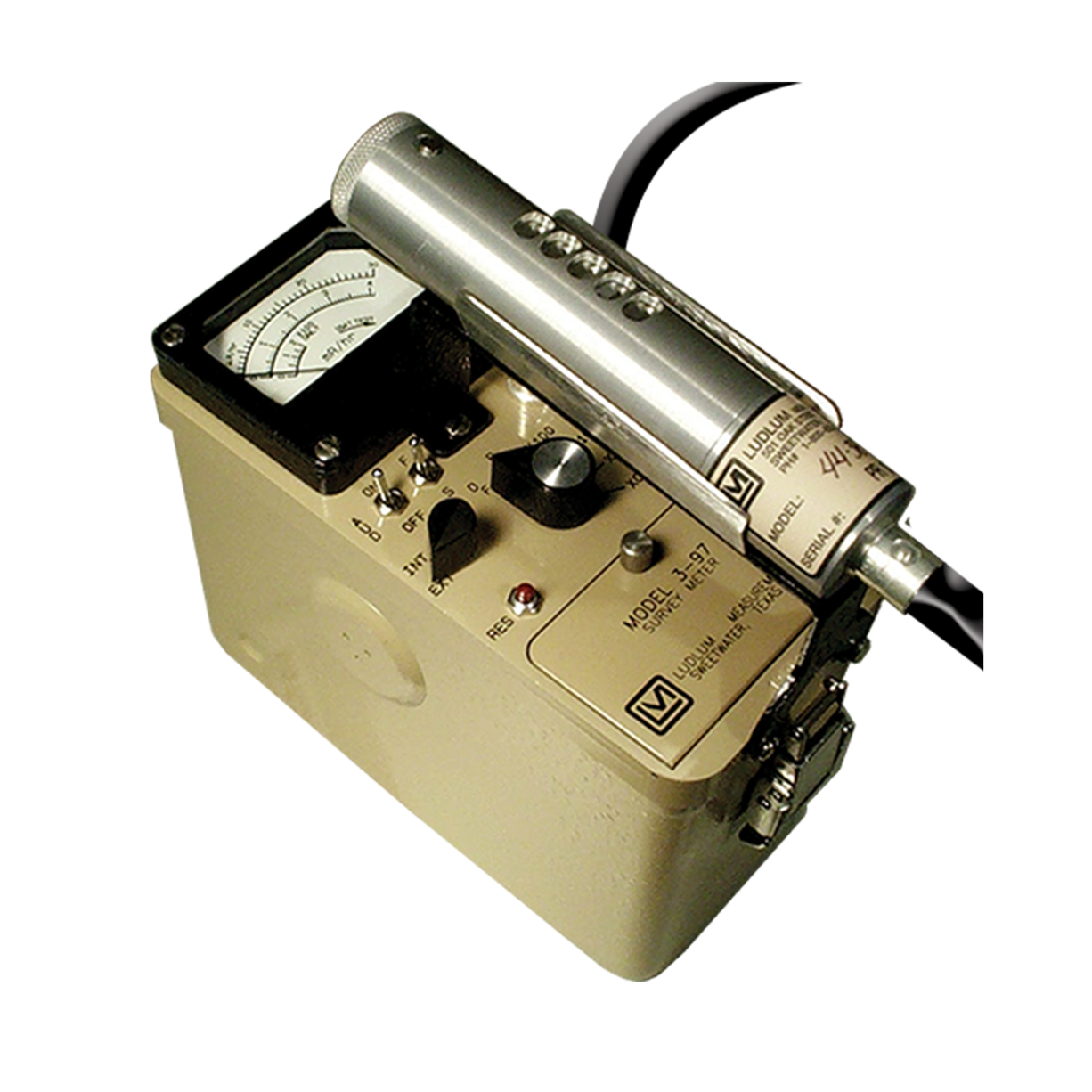

Model 3-97
The Model 3-97 provides a great solution for locating potential contamination and then accurately measuring the exposure rate, or for simply measuring the ambient exposure levels over a wide range. The instrument is equipped with an internal 2.5 x 2.5 cm (1 x 1 in.) NaI detector that is highly sensitive to gamma, with readings in the μR range between 0 to 3000 μR/hr (0 to 3 mR/hr). The instrument is additionally equipped with an external Model 44-38 energy-compensated GM to extend the detection range up to 200 mR/hr. The ratemeter is Ludlum's venerable Model 3-series, which employs a robust cast aluminum instrument housing with a separate battery compartment for long-lasting protection and instrument life. The front-panel controls include a rotary switch for selecting the 4-decade range, instrument shut-off and battery test, audio on/off switch, fast/slow response switch, count reset button, and internal/external detector switch. The Model 3-97 is a complete turn-key system with the detector cable and two "D" cell batteries.
Features
- Wide Range from μR/hr to 200 mR/hr
- High-Sensitivity Gamma
- Rugged
- 4-Range Analog Ratemeter
Related Products
Headphone Jack
This modification for survey meters adds a headphone jack to the instrument body so headphones can be used to monitor click-per-event audio and audio alarms. Headphones are helpful when the instrument is being used in areas with high ambient noise levels or in areas where the audio would be distracting to others, such as in a medical or office environment.
Shoulder Strap
This 1.8 m (6 ft) adjustable shoulder strap is a great way to keep your hands free while operating survey meters. The nylon strap with a wide rubber comfort pad can also be helpful for conveying some of the heavier instrument/detector combinations in the field.

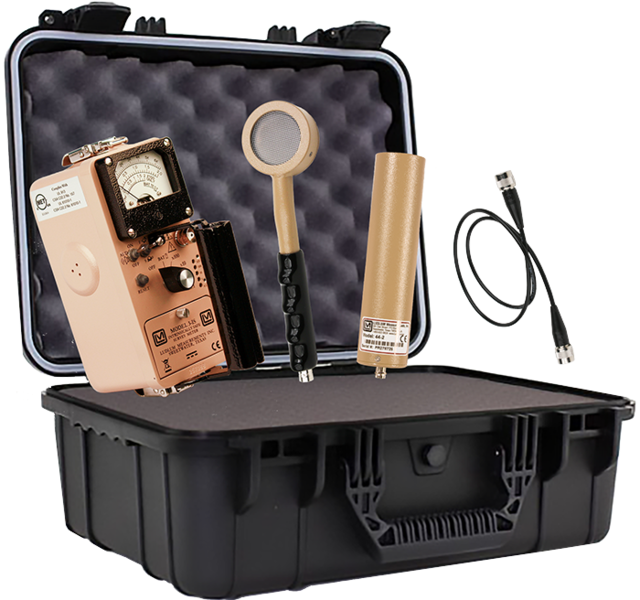

Model 3-IS NORM Kit
