Model 3-IS NORM Kit

Features

  • Ready-to-Go Kit in Rugged Case
  • Intrinsically Safe Analog Survey Meter
  • Measures Alpha, Beta, and Gamma Contamination
  • Includes:
    • Model 3-IS Intrinsically Safe Survey Meter
    • Model 44-9 Alpha-Beta-Gamma Detector
    • Model 44-2 High Energy Gamma Detector
    • Check Source, Cable, Batteries, Transport & Storage Case

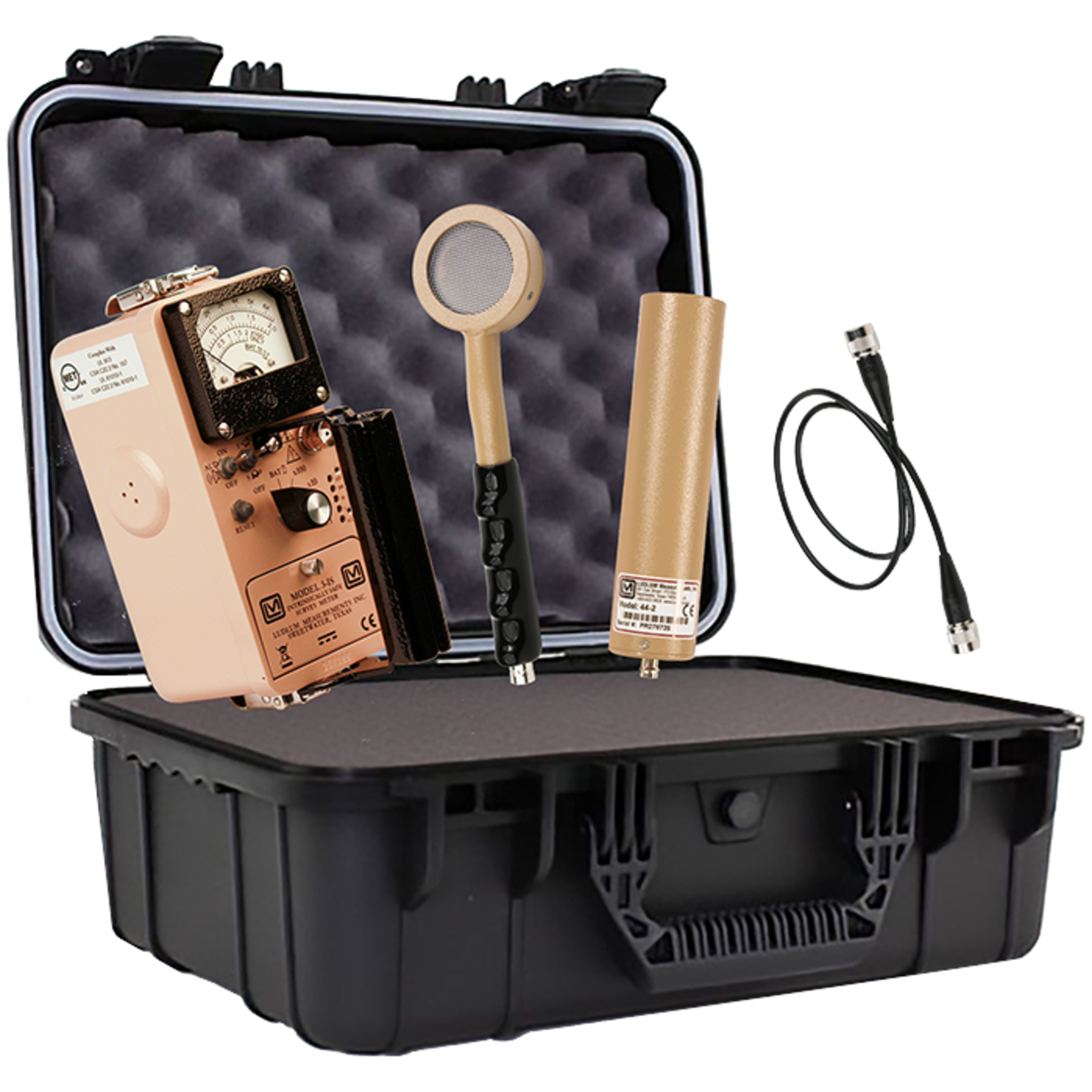

The Model 3-IS NORM Kit is composed of two dependable, high-quality detectors matched with the versatile Model 3-IS intrisically safe survey meter and packaged in a rugged transport and storage case. Users can connect either the Model 44-9 alpha-beta-gamma detector for general survey measurements or the Model 44-2 high-sensitivity gamma detector for locating the source of high readings. The case is cushioned with dense foam padding; is airtight, watertight, and corrosion-proof; and has padlockable hasps for additional security.

Ludlum offers several versions of pre-packaged response kits suitable for a wide variety of applications. If you desire more or different detectors, or other changes to our standard kits, please contact us regarding a customized kit.
